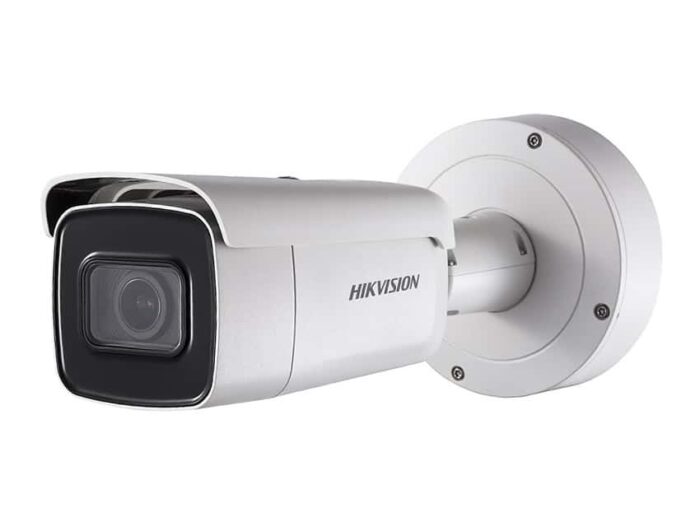

Hikvision 2MP 50M IR Vari-focal Bullet Network Camera – EasyIP 2.0 Plus

Home/Hikvision 2MP 50M IR Vari-focal Bullet Network Camera – EasyIP 2.0 Plus

Hikvision 2MP 50M IR Vari-focal Bullet Network Camera – EasyIP 2.0 Plus

 7,475.00  6,995.00

• 1/2.8″ Progressive Scan CMOS
• 2 Megapixels, 1920 × [email protected]
• 2.8 to 12 mm varifocal lens
• Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• H.265+, H.265, H.264+, H.264
• Three streams
• 120dB WDR – 50Mts IR Range
• 2 Behavior analyses, and face detection
• BLC/3D DNR/ROI
• IP67, IK10
• Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
• 3-Axis adjustment

Description

Camera
Image Sensor:1/2.8″ Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter time:1/3 s to 1/100,000 s
Slow shutter:Support
Lens:horizontal FOV: 110° to 31°
vertical FOV: 58° to 18°
diagonal FOV: 136° to 36°
Lens Mount:φ14
Adjustment Range:Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Focus:Auto


Compression Standard

Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:256Kbps~16Mbps
Audio Compression:G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams:Yes



Max. Image Resolution:1920 x 1080
Frame Rate:50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
Sub Stream:50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:BLC/3D DNR/BLC
Image Settings:Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping:No
ROI:1 fixed region for main stream and sub-stream
Day/Night Switch:Day/Night/Auto/Schedule/Triggered by alarm in


Network

Network Storage:microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility:ONVIF (Profile S, Profile G),ISAPI


Interface

Audio:1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Communication Interface:1 RJ45 10M / 100M Ethernet interface
Alarm:1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output:1Vp-p Composite Output (75 Ω, BNC)
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:Yes


Audio

Environment Noise Filtering:Support
Audio Sampling Rate:8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz


Smart Feature-set

Behavior Analysis:Line crossing detection, intrusion detection
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Recognition:Face Detection


General

Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:12 VDC, 1.2A, max. 14.5W
PoE (802.3at, 42.5V to 57V), 0.43A to 0.3A, max. 18W
Impact Protection:IK10
Weather Proof:IP67
IR Range:Up to 50m
Dimensions:Φ 144.13 × 332.73 mm (Φ 5.7″ × 13.1″)
Weight:Camera: Approx. 1740 g (3.8 lb.)
With Package: Approx. 2610 g (5.8 lb.)

Datasheet of DS-2CD2623G0-IZS

Quick Start Guide of DS-2CD2623G0-IZS

User Manual of DS-2CD2623G0-IZS
