EZVIZ C2C Mini O Plus, 1080p 2.4 Ghz Wi-Fi Smart Home Security Camera

Home » Products » EZVIZ » EZVIZ C2C Mini O Plus, 1080p 2.4 Ghz Wi-Fi Smart Home Security Camera

EZVIZ C2C Mini O Plus, 1080p 2.4 Ghz Wi-Fi Smart Home Security Camera

Call for Price

• Remote Access & Motion tracking with live notifications on your smartphone or tablet
• 5m night vision and two way audio
• 2MP (1920X1080) – 1080p, Wi-Fi 2.4GHz
• Multiple recording options – local (up to 128gb MicroSD), EZVIZ cloud or EZVIZ NVR
• Keep an eye on what matters most
• 135º coverage, allowing you to capture a great wide exposure of the room you are monitoring.
• MicroSD (up to 128GB)
• 1 Year Warranty

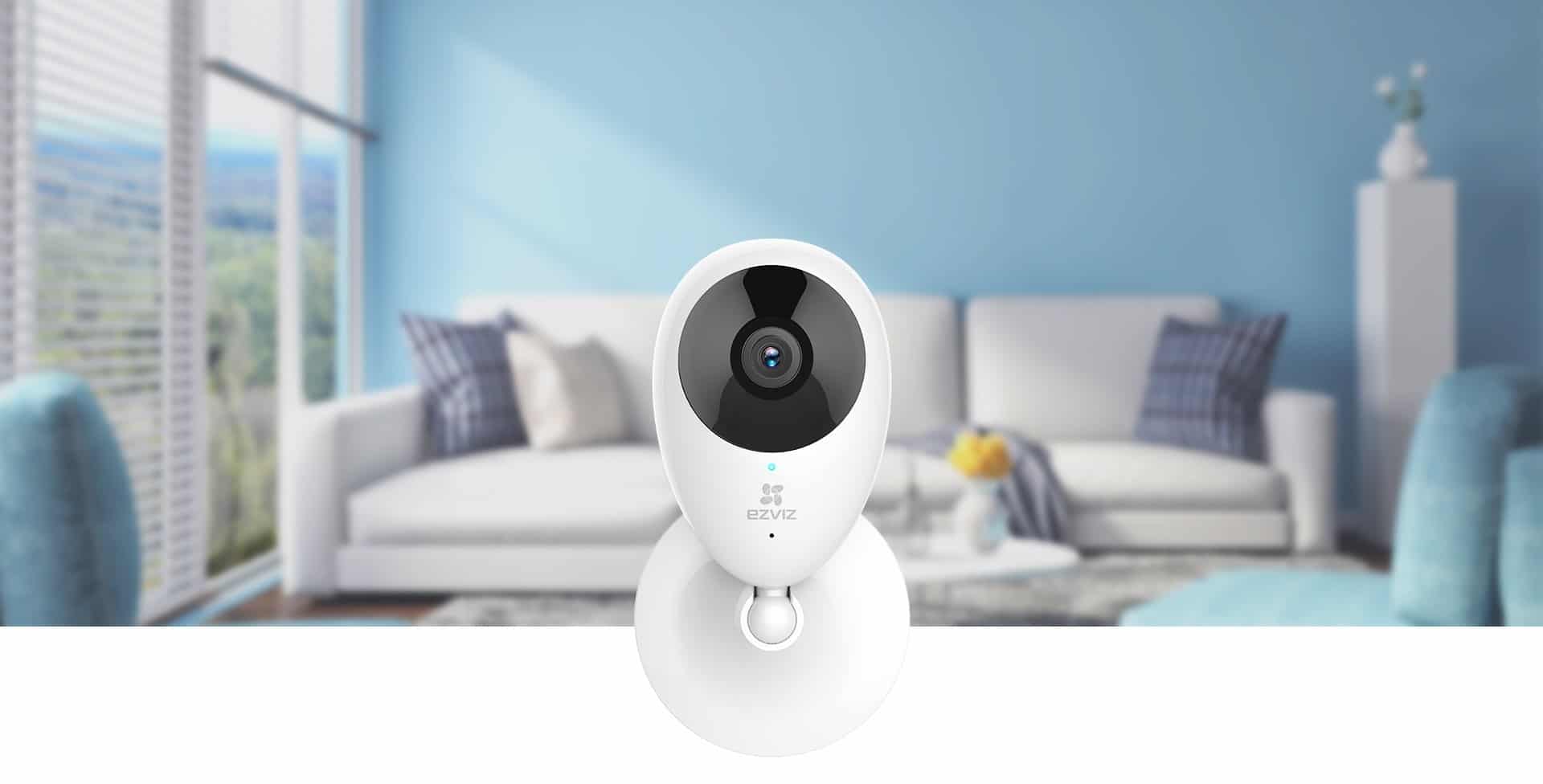

Keep Your Home Safe, Day and Night

With a magnetic base, the Mini O Plus is designed for simple and quick installation.

Indoor security monitoring made simple with its 1080p HD video, two-way audio

and clear-as-day night vision, balancing cost and top-notch performance.


Model Parameters


Image Sensor1/2.7’’2MP HD progressive scan CMOS
Shutter SpeedSelf-adaptive shutter
Lens[email protected], Horizontal angle: 115°, Diagonal angle: 135°
Lens MountM12
Day & NightIR-cut filter with auto-switching
WDRDigital WDR


Video CompressionH.264
H.264 TypeMain profile
Video Bit RateHD, balanced and smooth bit rate


Max. Resolution1920×1080
Image settingBrightness, contrast, saturation, etc. (configurable via EZVIZ Studio)


StorageSupport Micro SD card (Max. 128G)
Smart AlarmMotion detection

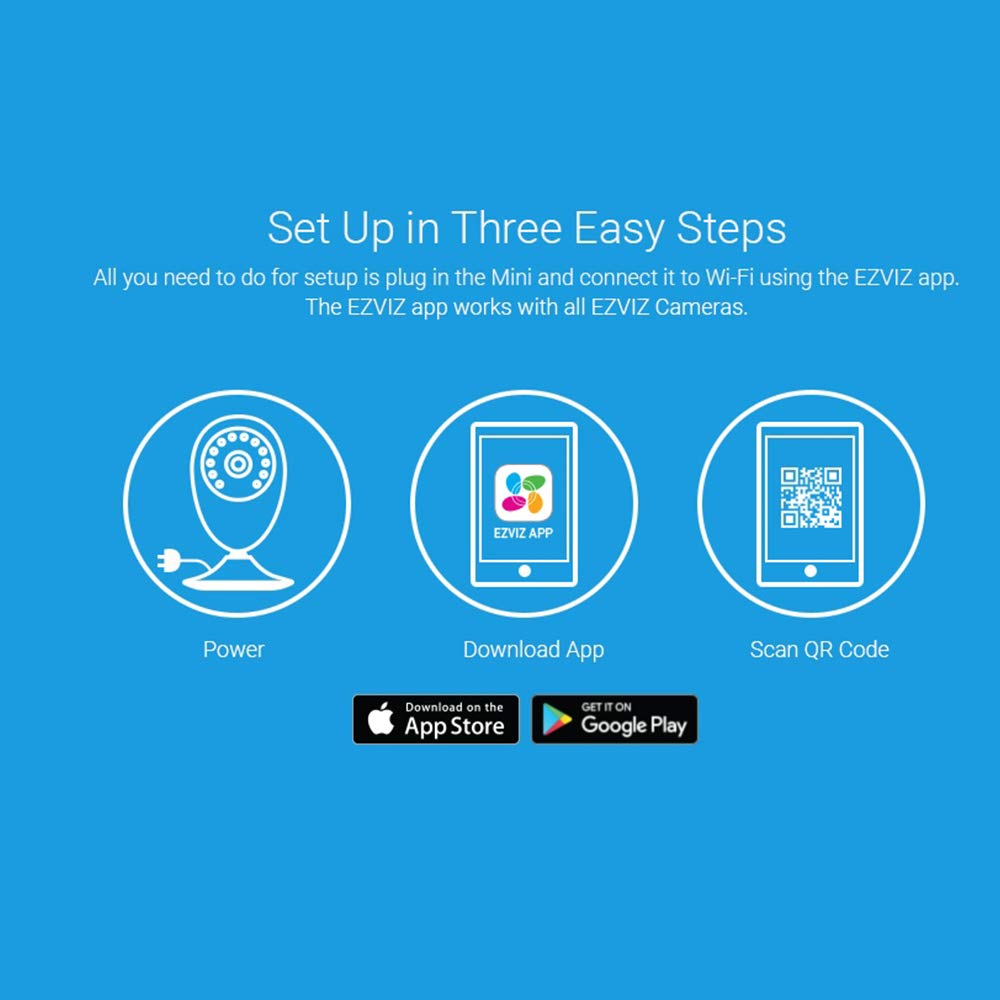

Wi-Fi PairingSmartConfig (Wi-Fi One-Key Configuration)/AP paring
ProtocolEZVIZ cloud proprietary protocol
Interface ProtocolEZVIZ cloud proprietary protocol
General FeaturesAnti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark
Minimum Network Requirements2M


StandardIEEE802.11b, 802.11g, 802.11n
Frequency Range2.4 GHz ~ 2.4835 GHz
Channel BandwidthSupports 20MHz
Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbpss


Operating Conditions-10ºC ~ 50ºC (14°F ~ 122°F), Humidity 95% or less (non-condensing)
Power SupplyDC 5V±10%
Power ConsumptionMax. 3W
IR RangeMax. 7.5 meters
Product Dimensions128mm x 58mm x 38mm
Packaging Dimensions149mm x 87.5mm x 91.5mm

Box Contains

1x Mini O Plus 1x Metal plate 1x Foam rubber 1x Power adaptor 1x Quick start guide

Quick Start Guide of Mini O

Ezviz C2C CS-CV206-C0-3B2WFR

CategoryLineDefault Warranty Period(Month)
Analog camerasAnalog cameras24
DVR7 Series DVR24
89 Series DVR36
IP cameras (IPC)1 Series IPC12
2 Series IPC24
4/5/7/8 Series IPC36
6 series IPC36
Zoom camera/zoom camera module36
Speed domeAE/DE Series speed dome24
AF/DF Series speed dome36
Thermal imagingThermal imaging36
NVR7 Series NVR24
89 Series NVR36
Large screenLCD12
Displayer (≤24 inches)12
Displayer (>24 inches)12
Interactive display12
Information release screen12
ControlIntegrated platform24
Video wall controller36
TransmissionOptical transceiver/switch24
Transmission cable60
All-in-one serverBlazer36
Data centerData center24
Universal server36
Intelligent transportation systemTraffic cameras24
Supplement light and auxiliary24
Traffic server24
Signal control24
Portable terminalPVR system24
Portable speed dome24
Body camera24
Entrance & exitEntrance & exit24
Parking lot24
Access controlAccess controller24
Access control terminal24
Card reader24
Card issuer /card enrollment station24
Access Portal12
LockSmart lock12
IntercomVideo intercom24
AlarmEmergency alarm24
Auto-alarm(excluding Pyronix)36
Consumer storage device – portable storageM100 Series12
Portable T100 Series36
Consumer storage device – NASW100 Series12
H100 SeriesDevice: 24

HDD/SSD:  36

Consumer SSDE100, E100N/E1000N Series36 or SSD lifespan, whichever occurs first.
Enterprise SSDS100, S200 Series36 or SSD lifespan, whichever occurs first.
Surveillance SSDV100/V200 Series36 or SSD lifespan, whichever occurs first.
Consumer memory cardE1/E10 Series84 or memory card lifespan, whichever occurs first.
Surveillance memory cardH1, L1/L2, H10 Series24 or memory card lifespan, whichever occurs first.
EZVIZAll Series12 Months
