- 16 x 10/100 Mbps PoE ports, 2 x 10/100/1000 Mbps combo uplink ports
- IEEE 802.3 af & at high PoE power supply
- Maximum 250 m long distance PoE transmission
- VIP port transmission priority
- Safe and reliable using 6 KV high surge protection
- Supports store-and-forward
- Supports MAC address auto learning and auto aging
- Supports smart cache optimization
- Supports desktop / wall mounting.

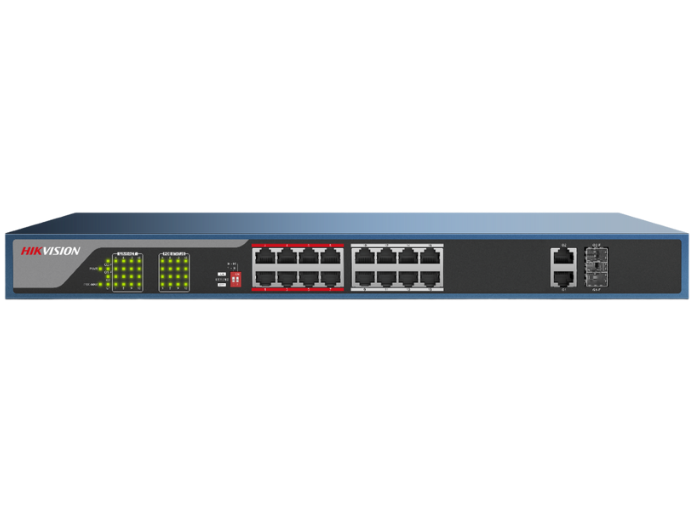

Home » Hikvision Mauritius Showroom » Hikvision » Hikvision 16 Port Fast Ethernet Unmanaged POE Switch
Call 403 3000
Call for Price
SKU: DS-3E0318P-E
Categories: All Products, Network Transmission, PoE Switch
Tag: Hikvision PoE Switch
Specification
Description
General
|
|
Temperatura de almacenamiento
|
Temperature: -40℃-70℃
|
Fuente de alimentación
|
100-240V AC, 50/60Hz
|
3.72kg
|
|
Humedad de almacenamiento
|
Humidity: 5%-90% , non-condensing
|
Surge Protection
|
4KV
|
Consumo de energía
|
≤250W
|
Rendimiento
|
|
Capacidad de conmutación
|
7.2Gbps
|
Store-and-forward
|
Store-and-forward
|
Max. Forwarding Rate
|
5.36Mpps
|
PoE
|
|
Modo de trabajo
|
Extend On:250m,10M,CAT 5e, Extend Off:100m
|
PoE Standard
|
IEEE802.3af, IEEE802.3at
|
PoE Power Budget
|
230W
|
Puerto PoE
|
16, 10/100Mbps RJ45 ports
|
Port
|
|
Uplink Port
|
2, 1000M Combo Port
|
Network Ports
|
18
|
High-priority Port
|
Ports 1-8
|
Accesorios
|
|
SFP modules (Optional)
|
HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km ,HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km
|
Estándar
|
|
Protocolo de red
|
IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
|
performance
|
|
Capacidad de conmutación
|
7.2Gbps
|
Max. Forwarding Rate
|
5.36Mpps
|
Store-and-forward
|
Store-and-forward
|
Data Sheet
Qucik Start Guide
