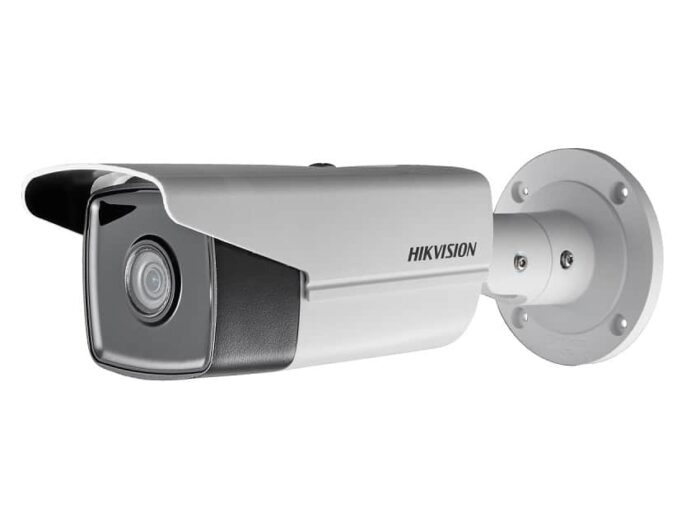

Hikvision 6MP 50M IR Fixed Bullet Network Camera – EasyIP 2.0 Plus

Home/Hikvision 6MP 50M IR Fixed Bullet Network Camera – EasyIP 2.0 Plus

Hikvision 6MP 50M IR Fixed Bullet Network Camera – EasyIP 2.0 Plus

 5,470.00  4,825.00

• 1/2.9″ Progressive Scan CMOS
• 6 Megapixels, 3072 × [email protected]
• 2.8/4/6/8mm fixed lens
• Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• H.265+, H.265, H.264+, H.264
• 120dB WDR – 50Mts IR Range
• 2 Behavior analyses
• BLC/3D DNR/ROI
• IP67
• Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

Description

Camera
Image Sensor:1/2.9″ Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter time:1/3 s to 1/100,000 s
Slow shutter:Support
Lens:2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°
6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°
8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°
Lens Mount:M12
Adjustment Range:Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Focus:Fixed


Compression Standard

Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:256Kbps~16Mbps
Triple Streams:Yes



Max. Image Resolution:3072 x 2048
Frame Rate:50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 ×
720)
60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 ×
720)
Sub Stream:50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:BLC/3D DNR/BLC
Image Settings:Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping:No
ROI:1 fixed region for main stream and sub-stream
Day/Night Switch:Day/Night/Auto/Schedule


Network

Network Storage:microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility:ONVIF (Profile S, Profile G),ISAPI


Interface

Communication Interface:1 RJ45 10M / 100M Ethernet interface
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:Yes


Smart Feature-set

Behavior Analysis:Line crossing detection, intrusion detection
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Recognition:Face Detection


General

Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:I5:
12 VDC, 0.6 A, max. 7W
PoE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 8.5W
I8:
12 VDC, 0.9 A, max. 10W
PoE: (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12W
Weather Proof:IP67
IR Range:-up to 50 m
Dimensions:Camera: Φ 104.8 × 299.7 mm (Φ 4.1″ × 11.8″)
Package: 386 × 156 × 155 mm (15.2″ × 6.1″ × 6.1″)
Weight:Camera: 1200 g (2.7 lb.)

Datasheet of DS-2CD2T63G0-I5/I8

User Manual of DS-2CD2T63G0-I5/I8

Quick Start Guide of DS-2CD2T63G0-I5/I8
