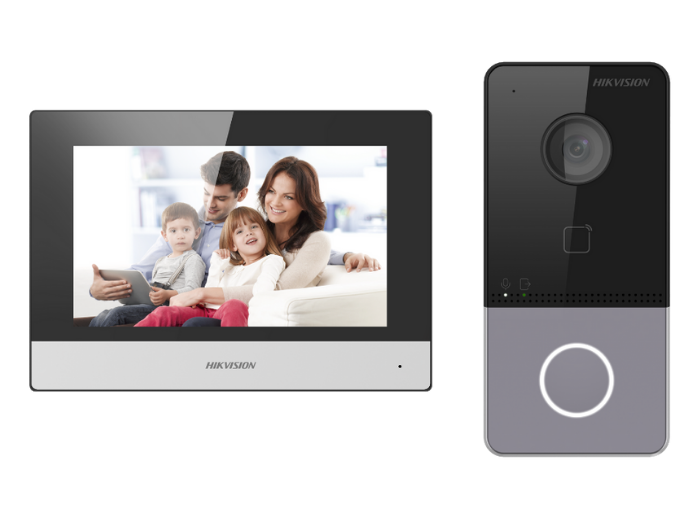

- IP video intercom kit for villa or house, only one call button;
- DS-KV6113-WPE1 x1;
- DS-KH6320-WTE1 x1;
- PSU x2;
Call for Price
SKU: DS-KIS603P
Categories: All Products, IP Video Intercom, Video Intercom
Tag: Hikvision Video Intercom
Specification
Description
|
Door station/System parameters
|
|
|
Operation system
|
Embedded Linux operation system
|
|
Flash
|
32 MB
|
|
RAM
|
128 MB
|
|
Door station/
Video parameters
|
|
|
Camera
|
2MP HD camera
|
|
Night vision
|
Low illumination IR supplement mode:3 m
|
|
Backlight compensation
|
Support
|
|
Digital noise reduction
|
Support
|
|
WDR
|
True WDR
|
|
Field of view
|
Horizontal: 129° Vertical: 75°
|
|
Video Compression Standard
|
H.264
|
|
Stream
|
Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
|
|
Motion detection
|
Support
|
|
Flash-avoid frequency
|
50 Hz, 60 Hz
|
|
Door station/
Audio parameters
|
|
|
Audio input
|
Built-in omnidirectional microphone
|
|
Audio output
|
Built-in loudspeaker
|
|
Audio quality
|
Noise suppression and echo cancellation
|
|
Audio compression standard
|
G.711 U
|
|
Audio compression Rate
|
64 Kbps
|
|
Audio intercom
|
Two-way audio communication
|
|
Door station/Network parameters
|
|
|
Network protocol
|
TCP/IP, RSTP
|
|
Wired network
|
10/100 Mbps Ethernet
|
|
Door station/
Device interfaces
|
|
|
RS-485
|
1
|
|
Alarm input
|
4
|
|
Debugging port
|
1
|
|
Grounding
|
1
|
|
TAMPER switch
|
1
|
|
Door station/General
|
|
|
Power consumption
|
＜ 10 W
|
|
Working temperature
|
e -40° C to 53° C(-40° F to 127.4° F)
|
|
Working humidity
|
10% to 95%
|
|
Dimension
|
138 mm × 65 mm × 27 mm
|
|
Installation
|
Surface mounting
|
|
Protection level
|
IP65
|
|
Indicator
|
2
|
|
Power supply
|
IEEE802.3af, standard PoE 12 VDC
|
|
Indoor station/System parameters
|
|
|
Operation system
|
Embedded Linux operation system
|
|
Memory
|
128 MB
|
|
Flash
|
32 MB
|
|
Indoor station/Display parameters
|
|
|
Display screen
|
7-inch colorful TFT screen
|
|
Display resolution
|
1024 × 600
|
|
Operation method
|
Capacitive touch screen
|
|
Indoor station/Audio parameters
|
|
|
Audio input
|
Built-in omnidirectional microphone
|
|
Audio output
|
Built-in loudspeaker
|
|
Audio quality
|
Noise suppression and echo cancellation
|
|
Audio compression standard
|
G.711 U
|
|
Audio compression Rate
|
64 Kbps
|
|
Indoor station/
Network parameters
|
|
|
Wired network
|
10/100 Mbps self-adaptive
|
|
Wireless network
|
Wi-Fi 802.11 b/g/n
|
|
Protocol
|
TCP/IP, SIP, RTSP
|
|
RS-485
|
1 RJ-45 10/100 Mbps self-adaptive
|
|
Indoor station/
Device interfaces
|
|
|
RS-485
|
1
|
|
Alarm input
|
8-ch alarm inputs
|
|
Relay output
|
2
|
|
TF card
|
Max to 32 G, SD 2.0 or lower version
|
|
Indoor station/General
|
|
|
Power consumption
|
≤ 6 W
|
|
Working temperature
|
‘-10 °C to 55 °C (14 °F to 131 °F)
|
|
Working humidity
|
10% to 90%
|
|
Dimension (L x W x H)
|
200 mm × 140 mm × 15.1 mm (7.9″ × 5.5 × 0.6″)”
|
